ESP series
Electrostatic collectors for neat oil mist and smoke
ESP1000, ESP2000 and ESP4000. Sub-micron mist and smoke captured at source with washable cells. No disposable filter media.
99%collection efficiency
0disposable media filters
250-770 Wtotal power across range
100 Paconstant static pressure
Technical data
ESP series specifications
| Model | Rated airflow | Power | Operating voltage | Static pressure | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| ESP1000 | 1000-1500 CMH | 250 W | 220-240 V, 1 Ph, 50/60 Hz | 100 Pa | 660 x 750 x 520 | 60 kg |
| ESP2000 | 2000 CMH | 430 W | 220-240 V, 1 Ph, 50/60 Hz | 100 Pa | 670 x 750 x 650 | 78 kg |
| ESP4000 | 4000 CMH | 770 W | 220-240 V, 1 Ph, 50/60 Hz | 100 Pa | 1140 x 750 x 650 | 105 kg |

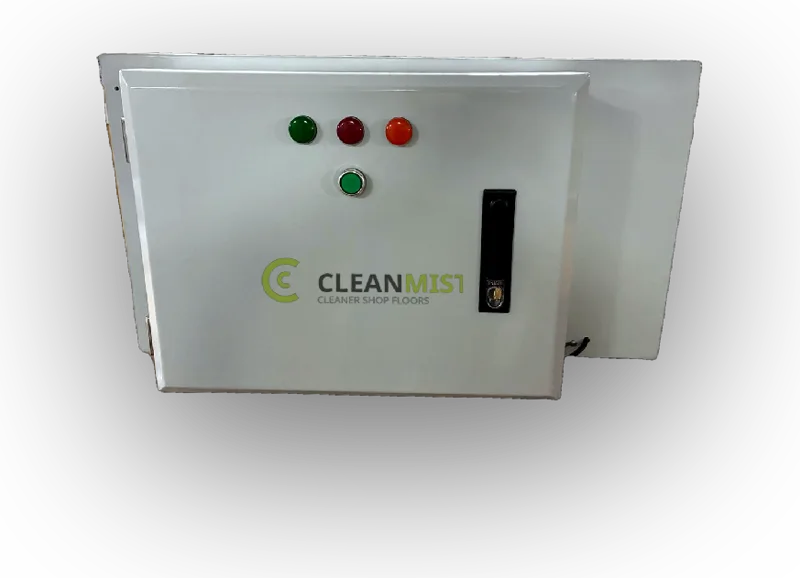

Every unit ships with a lockable control panel, ready to wire to a standard single-phase supply. Machine-mount, stand-mount or ducted.
How it works
Four stages, no consumable media
Pre-filter
Washable metal mesh catches swarf and larger droplets and spreads airflow evenly.
Washable metal mesh catches swarf and larger droplets and spreads airflow evenly.
Ionizing section
A high-voltage ionizer charges every mist and smoke particle, down to sub-micron size.
A high-voltage ionizer charges every mist and smoke particle, down to sub-micron size.
Collecting cells
Charged particles are driven onto oppositely charged plates. Oil drains to the sump for reuse or clean disposal.
Charged particles are driven onto oppositely charged plates. Oil drains to the sump for reuse or clean disposal.
Optional HEPA
An after-filter stage polishes the air for demanding smoke applications.
An after-filter stage polishes the air for demanding smoke applications.
Electrostatic vs media
Why electrostatic for neat oil and smoke
| Cleanmist ESP | Media / mechanical | |
|---|---|---|
| Sub-micron smoke | Captured | Passes through media |
| Filter replacement | None, cells are washed | Ongoing cartridges |
| Pressure drop | Constant 100 Pa | Rises as media loads |
| Disposal | Oil drains for reuse | Saturated media to dispose |
Selecting a model
ESP1000
Compact turning and machining centres.
ESP2000
Larger machines and grinding.
ESP4000
Big enclosures, multiple machines or centralised ducted extraction.
Neat oil mistGrinding smokeEDMWelding smokeOil quench
